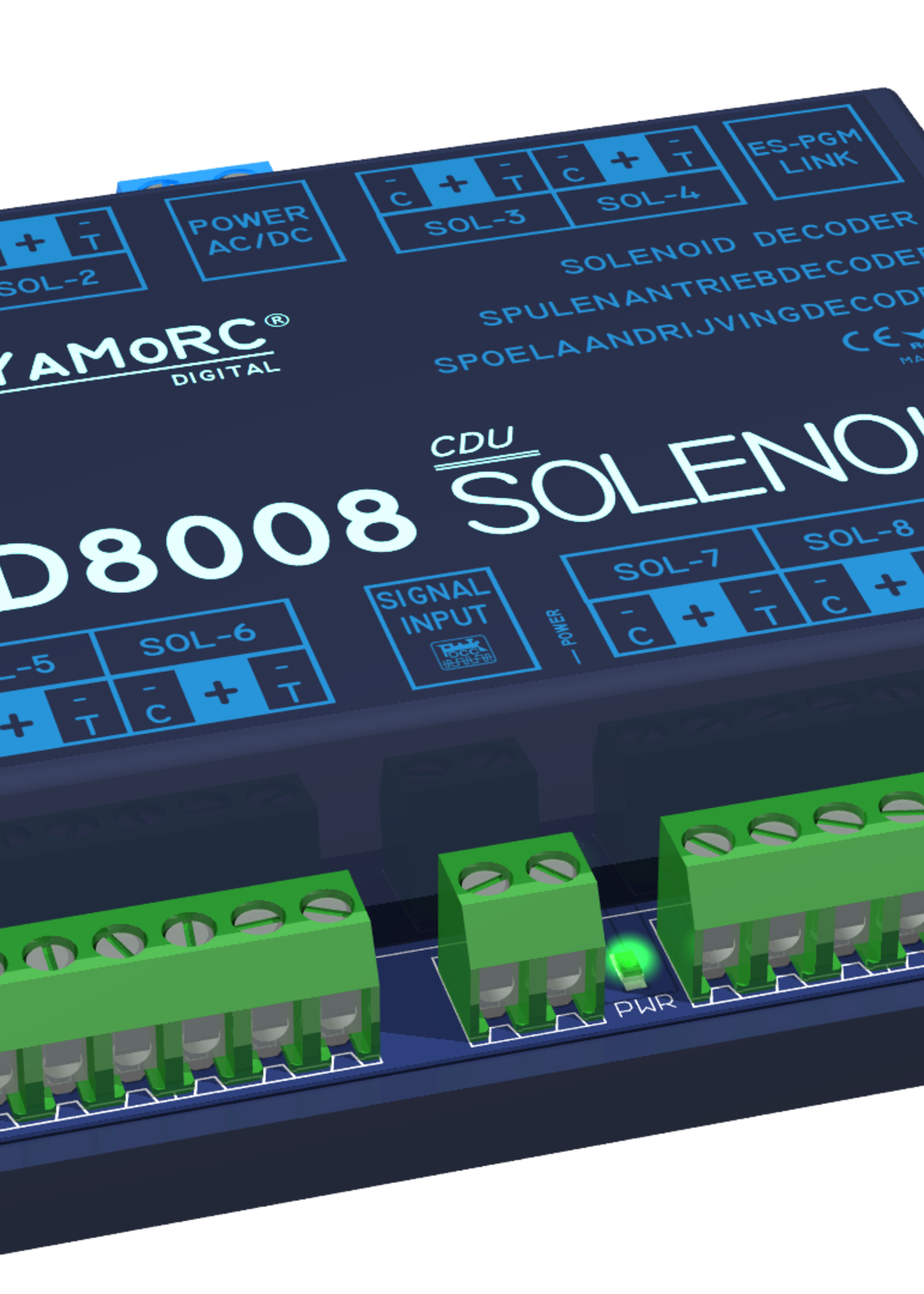

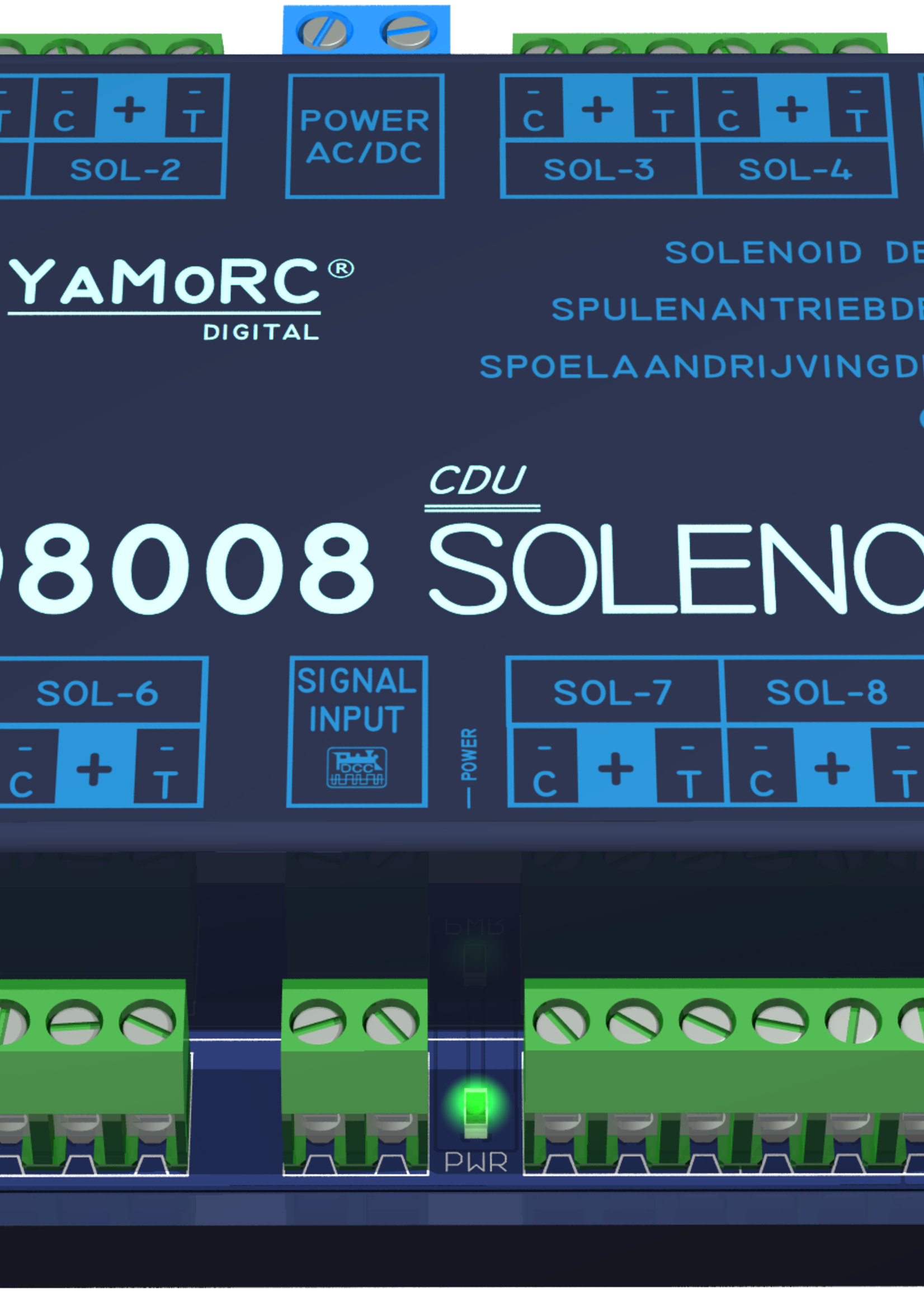

Specially designed to cope with, high-current, solenoid point-motors, the YD8008 is our 8-fold solenoid decoder with intelligent CDU.

It presents the following features:

• Eight independent 9.5Amp solenoid outputs
• Smart, 9400 uF CDU, monitoring charge levels for safe and powerful switching
• Only 380 mA power consumption during charging
• Very simple basic-setup (base address), by pressing the programming button and switching the desired turnout address
• No complicated CV settings.
• Clear text configuration based upon our new ES-Link technology.
  With our YD9101-Config or YD7100-Command, configuration can be done via built-in web interface. No need for PC-software or Phone/Tablet Apps !
• Eight address to output mappings, each mapping can a free choice address which can switch any and every output
• Sequential output activation based upon pulse time and CDU charge level.
• CDU startup delay adjustable to prevent tripping short circuit protection in boosters
• Very modest power supply requirements. Even for SEEP/Gaugemaster motors a 15V/500mA wall wart is more than enough.
• Not suitable for motorized point motors.
• Voeding: AC 10-16V; DC: 12-19V

Programming the module:
1) via the YD6016LN or YD6096LN module in conjunction with the ES-LINK or via RS485 patch cable.
2) via the YaMoRC YD9100 USB configuration module in conjunction with the ES-LINK.
The YD6902 ES-LINK-RS485 or YD6901 ES-LINK adapters are required for use.

Manuals and software for this product can be downloaded from the YamoRC website using the following link: http://yamorc.de/products/
On the product page of this product, you can download the manuals and software on the SERVICE tab.
