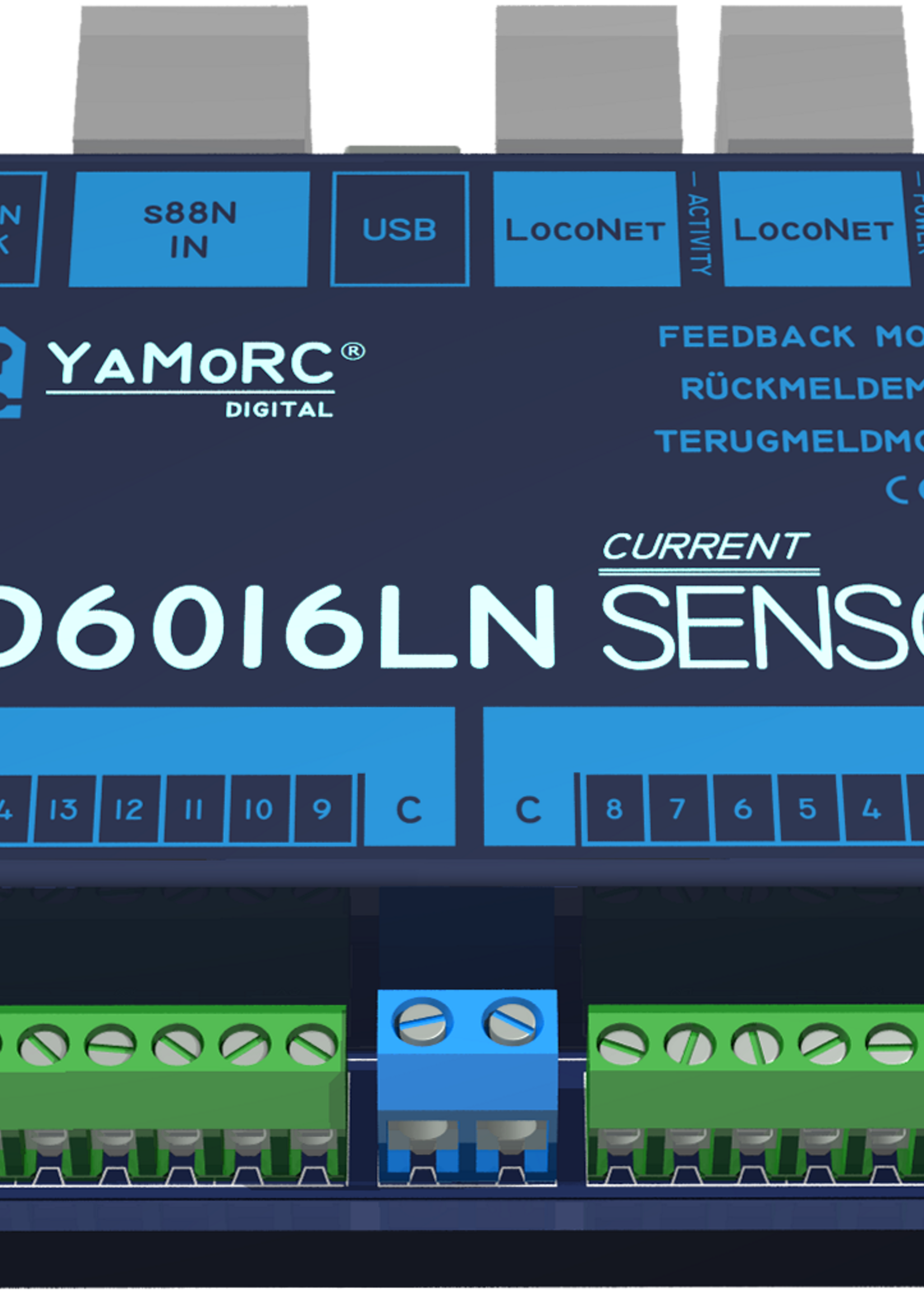

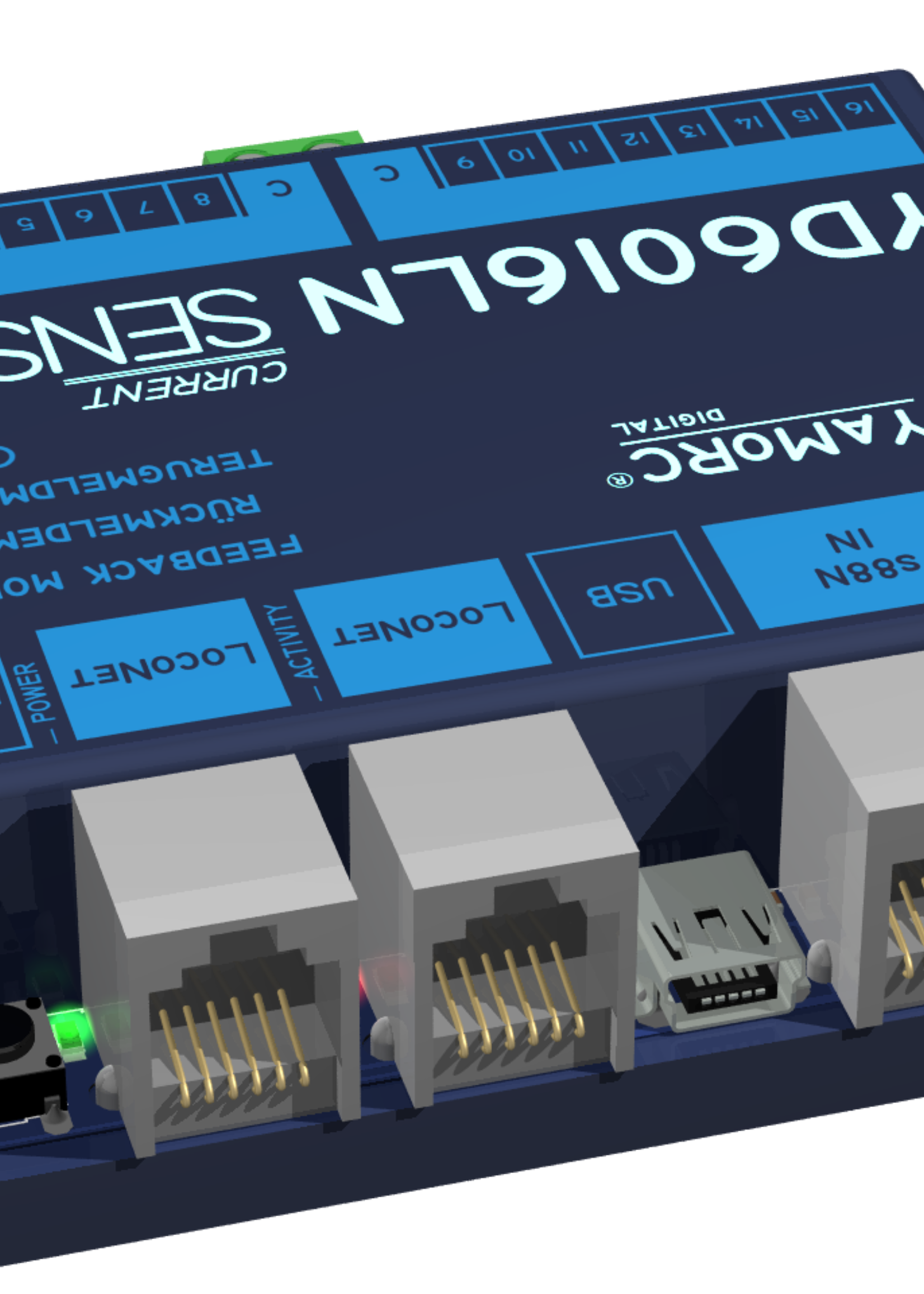

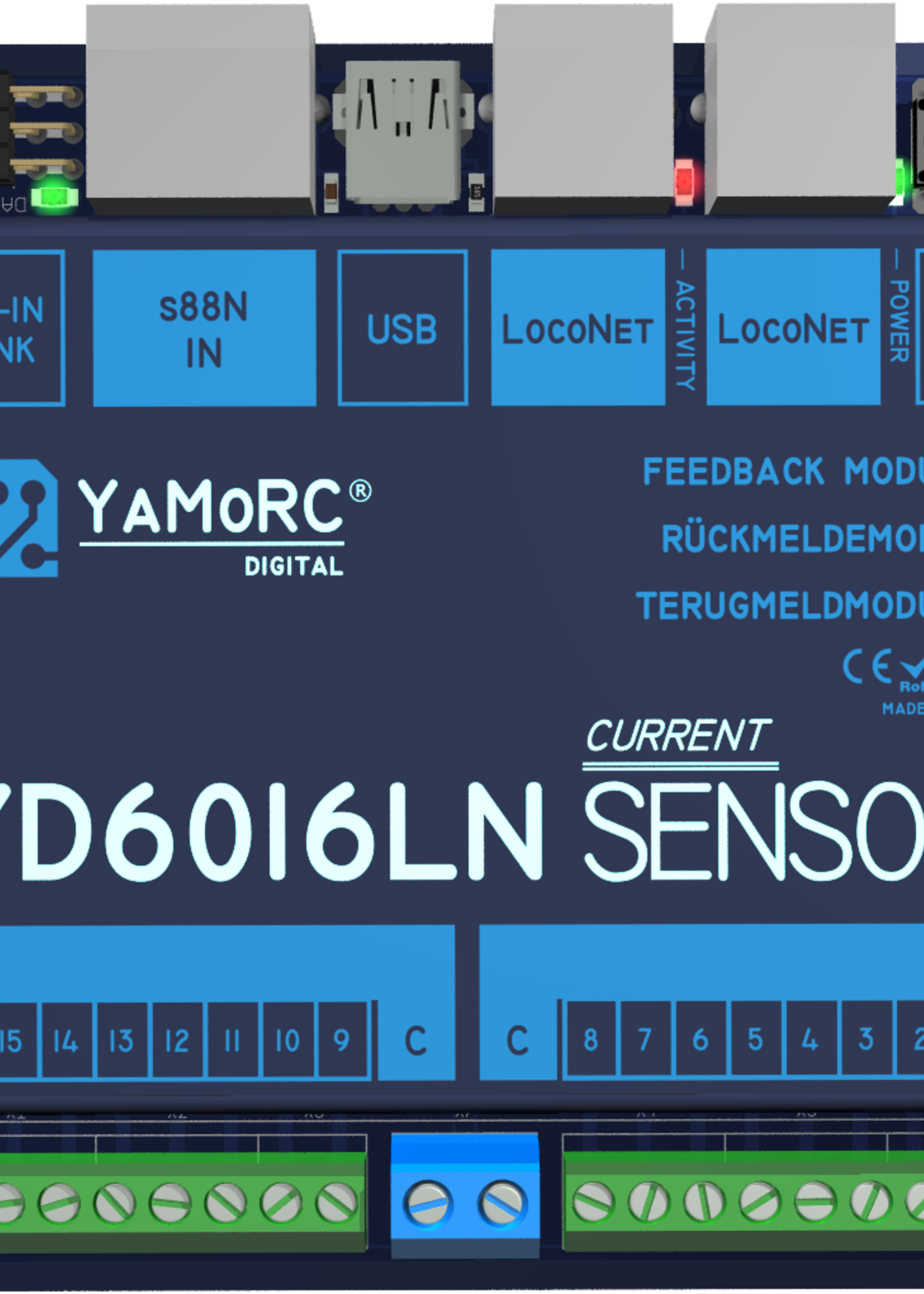

Our standard current-sensing feedback module with LocoNet Interface

It presents:

• 16 current-sensing detectors, arranged in two independent blocks of 8, each with their own Common
• 2 Amp continuous current per detector, 8 Amps in total combined over the 16 detectors on the whole module
• 5 Amp short duration overload (100ms) capable per detector.
• 1mA current sensitivity
• Capacitive input filter on every input, to suppress noise on long cables and track-sections
• Configurable on- and off-delay setting for each input for optimal de-bouncing in case of non optimal wheel-track contact
• Every input individually configurable for various actions like feedback, turnout toggle, turnout throw, turnout close
• Every input individually configurable for feedback- or turnout-address
• ES-IN-Link for direct connection of up to 5 additional YD6016ES modules (effectively creating a 96 input LocoNet module)
• ES-IN-Link connection to other ES-Link enabled modules for module-configuration
• ES-IN-Link connection to YD9101 for web-based configuration
• USB connection with one Virtual COM ports for the YD.Command protocol
• Firmware updatable over USB
• Power supply directly from LocoNet-T or -B ( or USB for easy configuration and updating on a PC )

Manuals and software for this product can be downloaded from the YamoRC website using the following link: http://yamorc.de/products/
On the product page of this product, you can download the manuals and software on the SERVICE tab.
