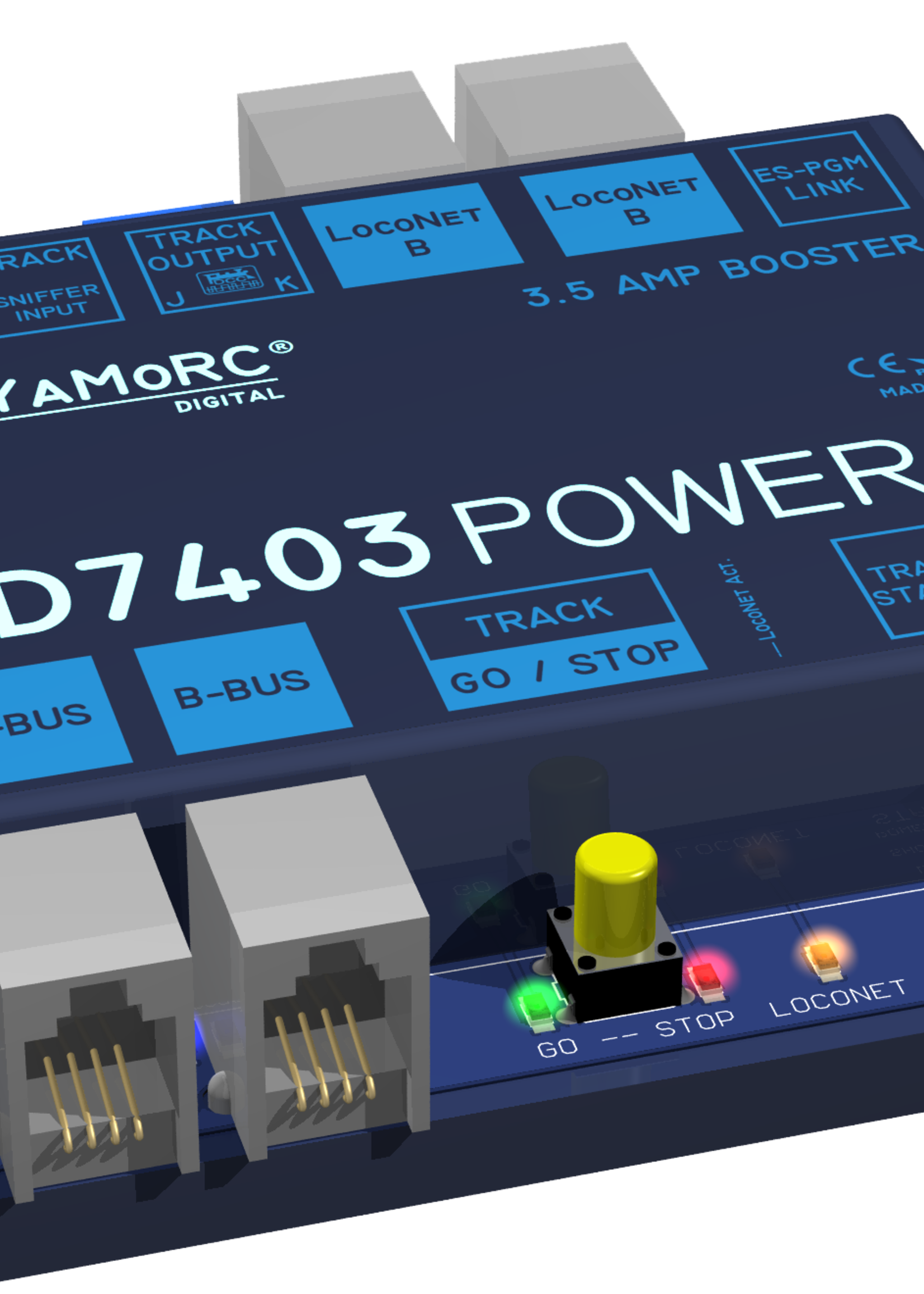

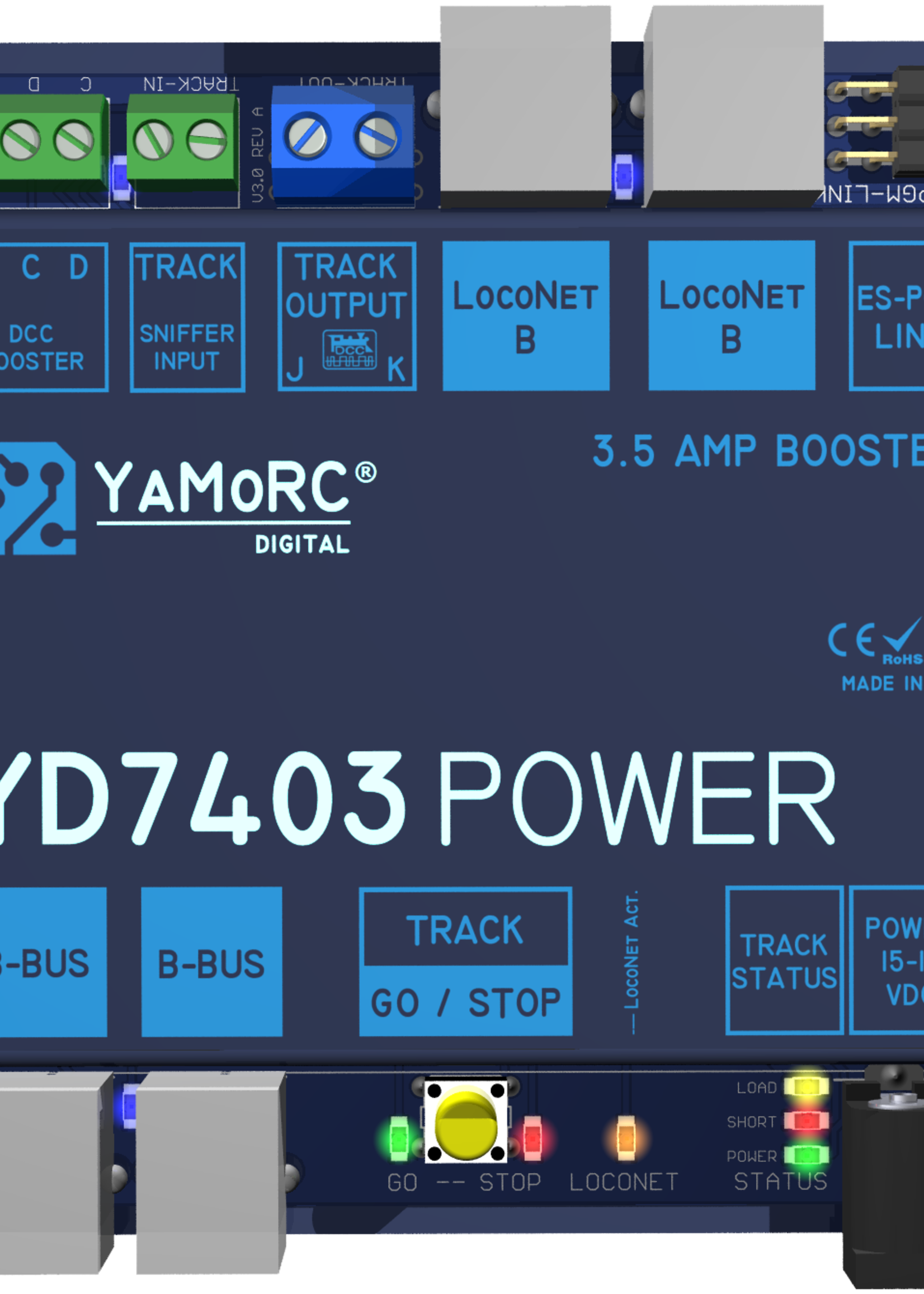

The power-house of the YD7x family,

It presents:

• Universal 3.5 Amp booster.
• Fully galvanically isolated on all, defacto industry standard inputs:
  – LocoNet – B
  – Roco B-BUS
  – DCC-CDE
  – Track Sniffer
• Automatic input selection
• LED indication of currently active input
• Local GO / STOP button to start/stop the booster, or reset in case of local short circuit
• Follows input RailCom Cut-Out to it\\\\’s output
• ES-PGM-LINK for easy configuration

Power:

• Input 15-19 V DC
• Output 3.5 A through cool H-Bridge MOSFET technology. ( no heatsink needed )
• Short circuit protected
• Automatic short-report over LocoNet, CDE channel or BBus interface.
• H-Bridge Temperature measurement
• Track-Current measurement
