INTERIOR LIGHTING SHINE PLUS MAXI DIGITAL

These lighting strips are an easy way to light up your carriages and your track and buildings. The lighting strips can be cut into sections. The cut parts cannot be reconnected.

Number of LEDs: 14
Built-in function decoder: yes, DCC
Number of switchable outputs: 14 + 2
Function assignment: F0, F1-F16
Length: 275mm / 10.83in
Width: 10 mm / 0.39 inch
Shortest section possible: 197 mm / 7.76 in.

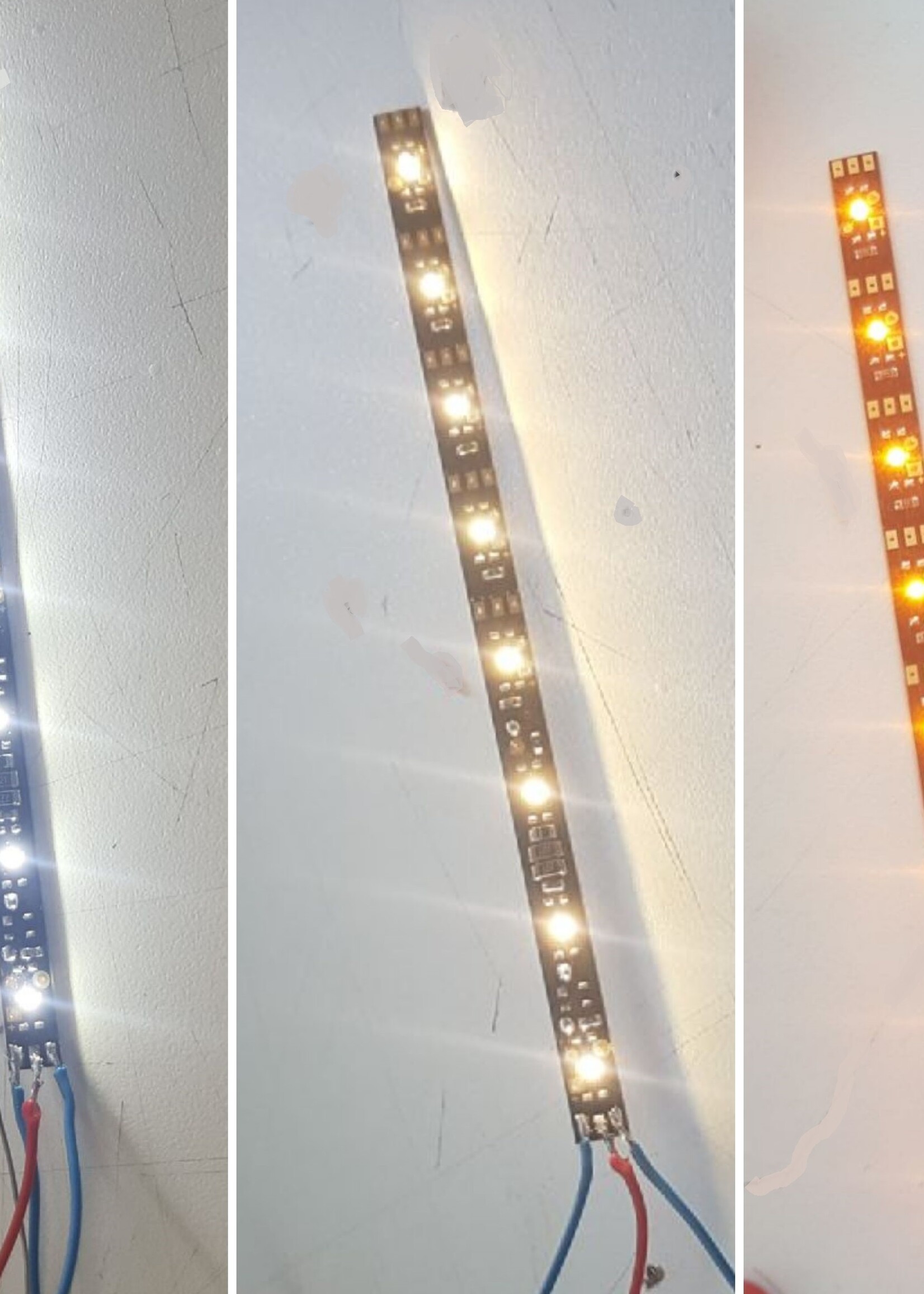

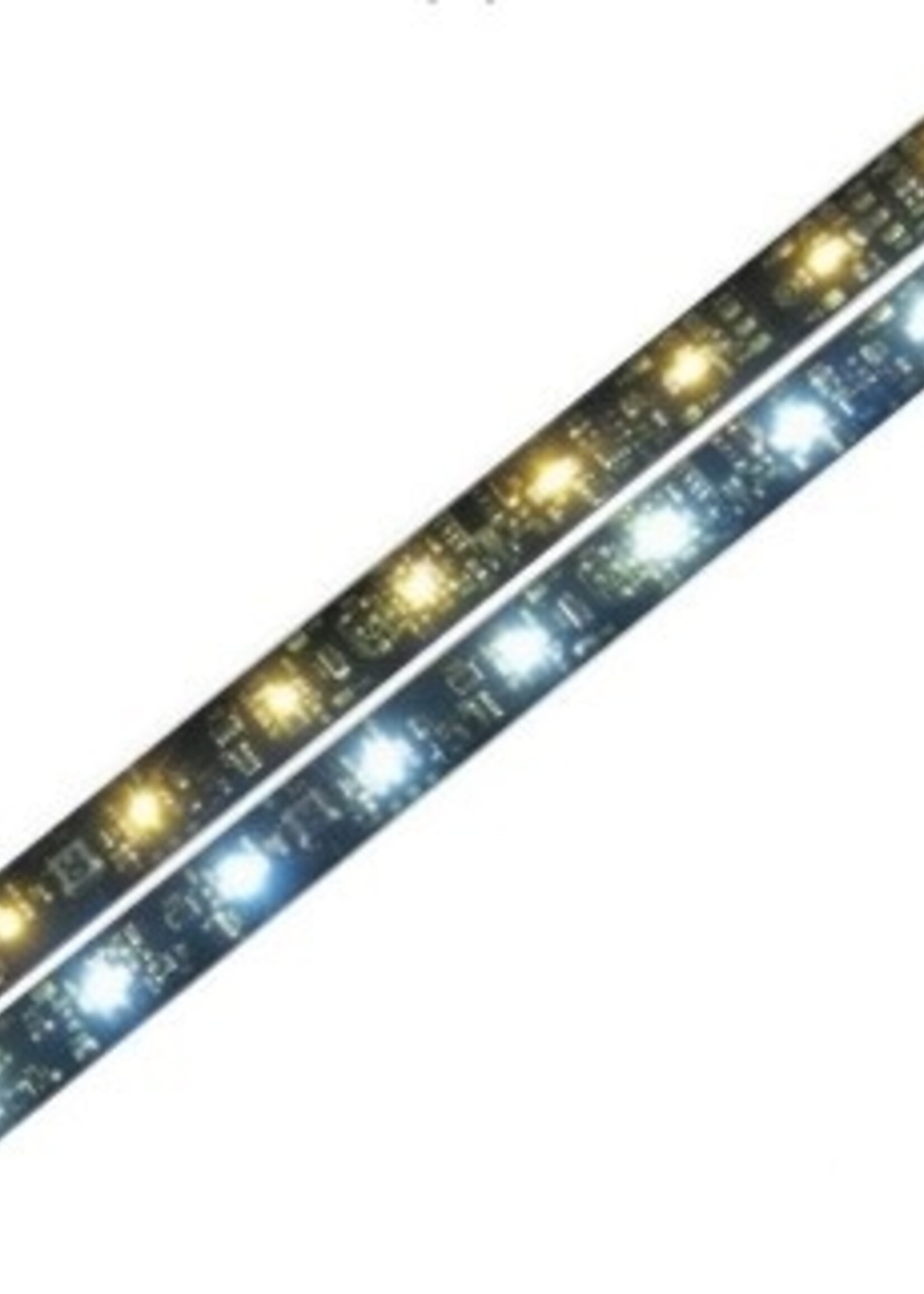

Available in colors:
- Warm white
- Cool white
- Yellow

The lighting strips have a built-in function decoder with its own CV address with 14 + 2 outputs, of which 14 individually controllable outputs that are connected to the LEDs.

Each LED can be switched on / off individually and provided with its own effect per output, namely:

• Continuously on;
• Start slowly
• Fluorescent beam with start-up effect
• Flickering lamp
• Broken fluorescent beam

The two free outputs can be used, for example, to control rear lights.

The manual can be found on the TrainOMatic website: https:/train-o-matic.com/download/
