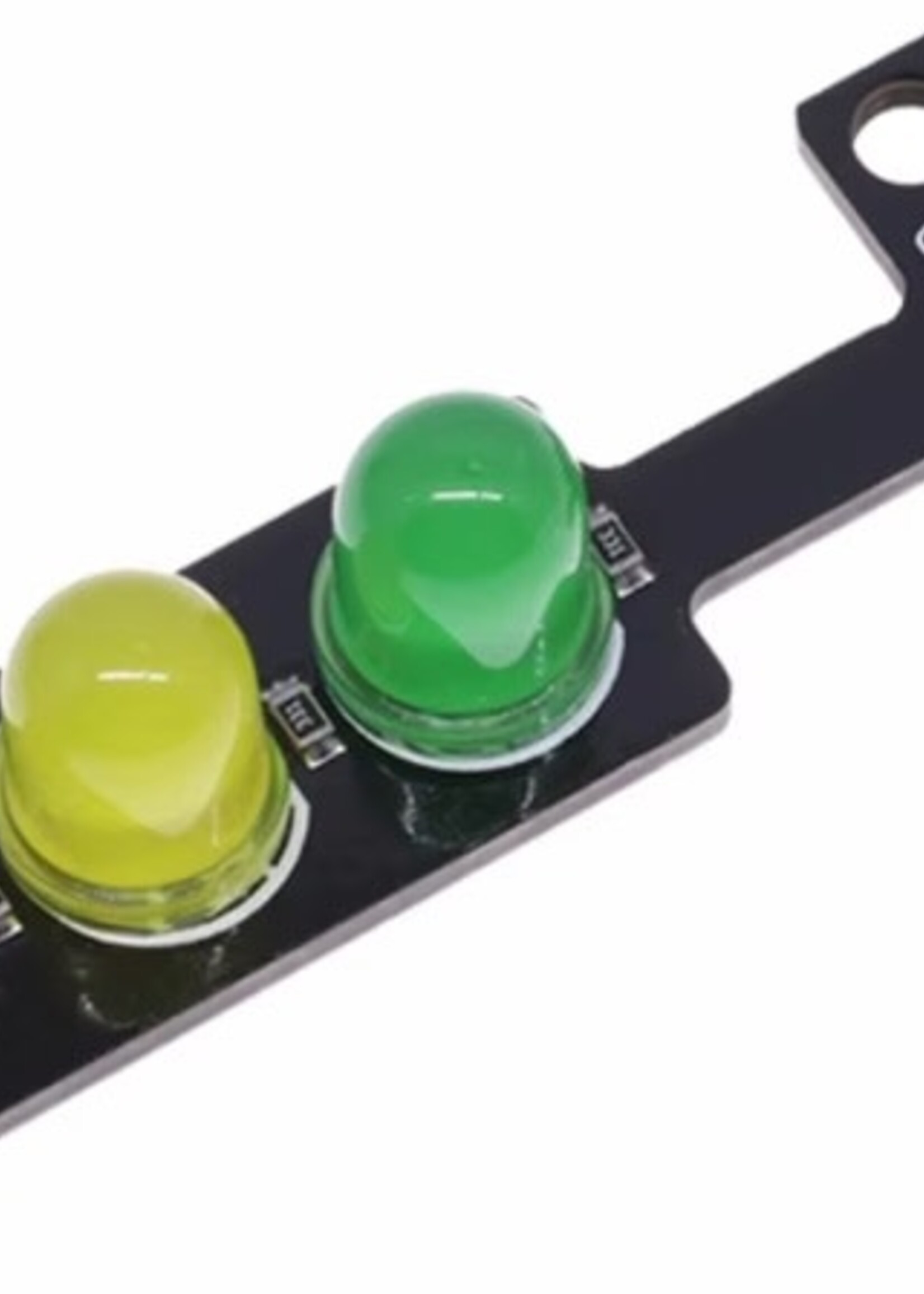

These imitation signals are ideal for shadow stations or bare sidings. They allow you to easily pre-signal any track. Thanks to the flat mounting, and the robust 10 mm LEDs, you don't have to worry about damage when performing maintenance. In addition, the LEDs illuminate brightly enough to make the status of the signal visible even when enclosed by trains.

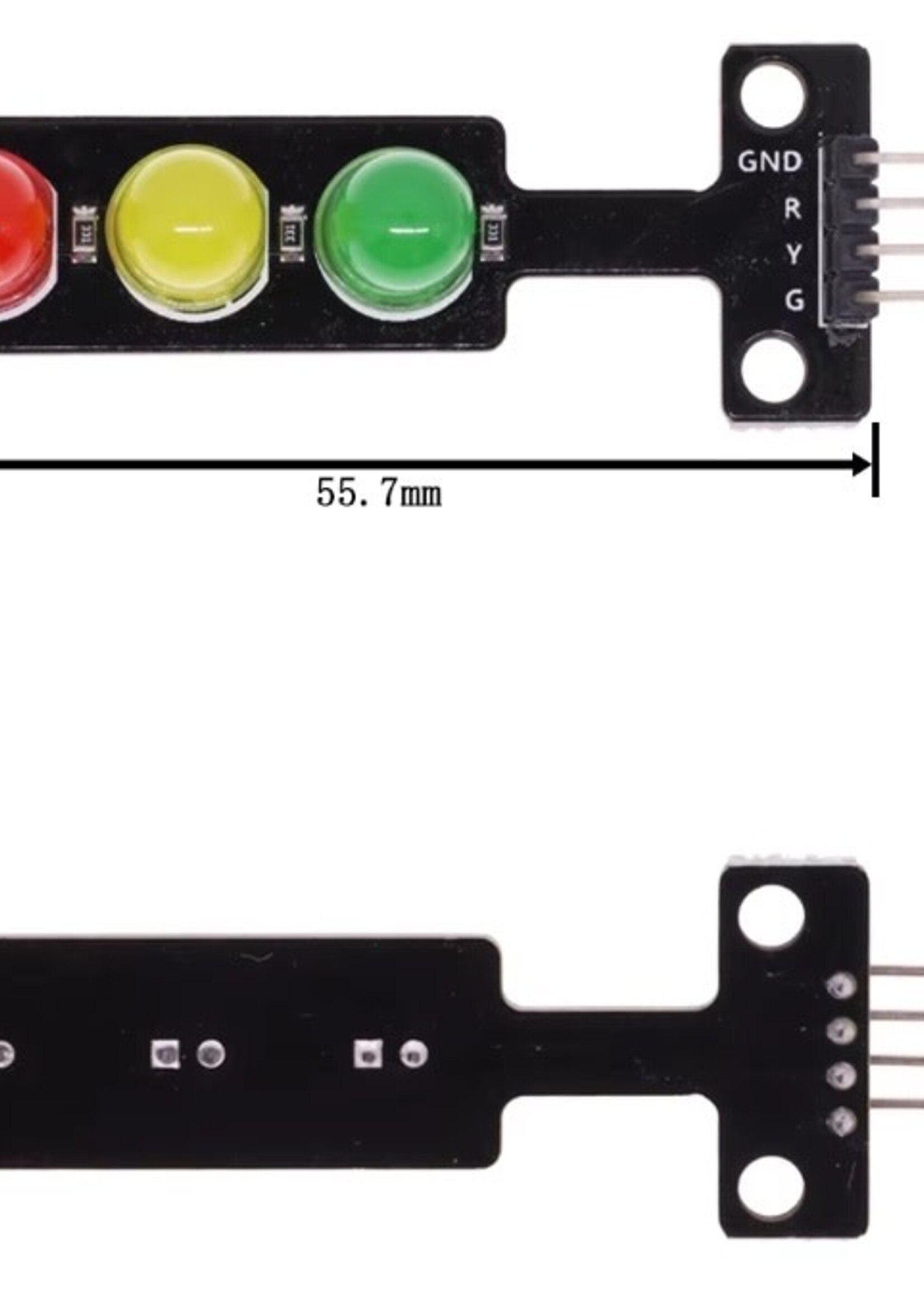

Length 55.7 mm
Width 21.8 mm
Height 14 mm
Caution:
The PCB has a common V-, the switched polarity is V+
If you connect it to an OC32, you must provide the outputs with source drivers.
If you connect it to a DCC decoder like the YD8116, you will need an anode/cathode adapter like the YD6942.

Of course, you can also use hot-air soldering to desolder the LEDs and solder them back in reverse.
