Product features and functions

• For optional operation with conventional direct current driving device, digital systems according to SelecTRIX 1 and 2 or according to the NMRA standard (DCC)
• The switchover between analogue and digital operation takes place automatically
• The last programmed system is used in digital mode (it is not switched over automatically!)
• SelecTRIX 1 31 speed steps, 100 addresses
• SelecTRIX 2 127 speed steps, 10,000 addresses, 16 additional functions
• DCC Short addresses (1-127), long addresses (0001-9999), with 14, 28, 126 speed steps
• The latest generation of load control, resulting in particularly smooth control behavior
• Different control variants for optimal adaptation to the engine
• Internal 127 speed steps
• Adjustable motor frequency (low frequency, 16 kHz, 32 kHz)
• Block section operation with simple diodes in digital operation
• Light and function outputs can be dimmed and activated analogously
• Maneuvering
• Motor, light and track connections can be exchanged electronically
• All function outputs freely programmable
• Temperature protection
• Original vehicle-specific steam, diesel and electric locomotive sound projects (no "standard sounds")
• Realistic steam driving noise with wheel-synchronized and overlapping exhaust shocks, pitch dependent pitch and independent boiling sound
• Realistic diesel-hydraulic driving noise with pitch-dependent pitch, variable idling speed and independent acceleration levels, turbocharger and dynamic brake
• Realistic diesel-mechanical driving noise with multiple gears, idling, multiple driving and acceleration levels and possible switching noise
• Realistic electric driving noise with driving motor and driving motor fan as well as upgrade noises (pantograph, main switch, etc.), rear derailleur noise and dynamic brake
• Bell, horn, pipe, doors close etc. (depending on the sound project) can be triggered separately at any time
• All sound sequences can be freely configured ("function mapping") and triggered at random
• Speaker connection protected against short circuit and overload
• Low heat development through the use of the latest technologies
• Reset function for DCC and SX2
• Update capability of the decoder
• Loadability of sound projects via SUSI interface using a programmer

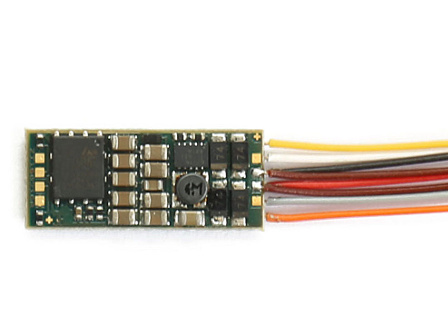

Vehicle sound decoder 1.0 A
