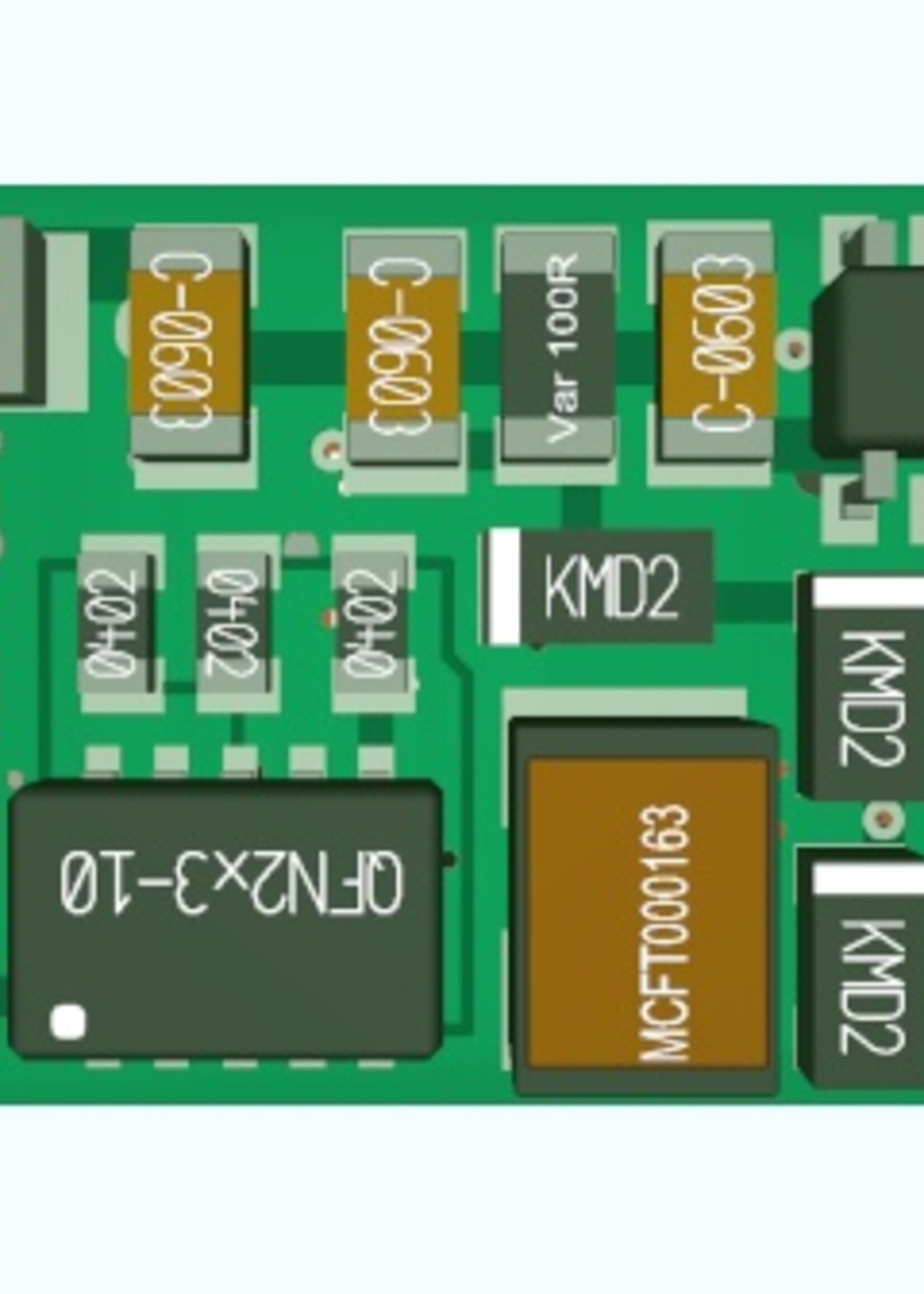

Doehler & Haass PD06A

Article number: 830945
€62,90
Incl. tax

The rating of this product is 0 out of 5

(0)
On backorder

Product features and functions

  • For optional operation with conventional direct current driving device, digital systems according to SelecTRIX 1 and 2 or according to the NMRA standard (DCC)
  • The switchover between analogue and digital operation takes place automatically
  • The last programmed system is used in digital mode (it is not switched over automatically!)
  • SelecTRIX 1 31 speed steps, 100 addresses
  • SelecTRIX 2 127 speed steps, 10,000 addresses, 16 additional functions
  • DCC Short addresses (1-127), long addresses (0001-9999), with 14, 28, 126 speed steps
  • The latest generation of load control, resulting in particularly smooth control behavior
  • Different control variants for optimal adaptation to the engine
  • Internal 127 speed steps
  • Adjustable motor frequency (16 kHz, 32 kHz)
  • Block section operation with simple diodes in digital operation
  • Light and function outputs can be dimmed and activated analogously
  • Maneuvering
  • Motor, light and track connections can be exchanged electronically
  • All function outputs freely programmable
  • Temperature protection
  • Reset function for DCC and SX2
  • Update capability of the decoder

The update (firmware download from the Internet is free of charge) is possible when the decoder is installed on the track (no opening of the vehicle necessary) and is carried out either via the FCC digital center or the programmer . If no suitable hardware is available, the company Doehler & Haass will provide a programmer on request .

The vehicle decoder PD06A supports bidirectional communication (locomotive address feedback in DCC mode, RailCom®).

The vehicle decoder PD06A does not support SX1 programming. Please set up SX1 operation with SX2 parameter programming.

Vehicle decoder for miniature motors 0.2 A / 6 V

Operating mode SX1, SX2, DCC, DC analog
Dimensions [mm] 6.8 * 11.4 * 2.8
Total resilience 0.5 A
Motor voltage 6 V
Max. Motor current 0.2 A
Max. Driving voltage 18 V
LV, LR (dimmable) 150 mA each
AUX1, AUX2 (dimmable) 300 mA each
