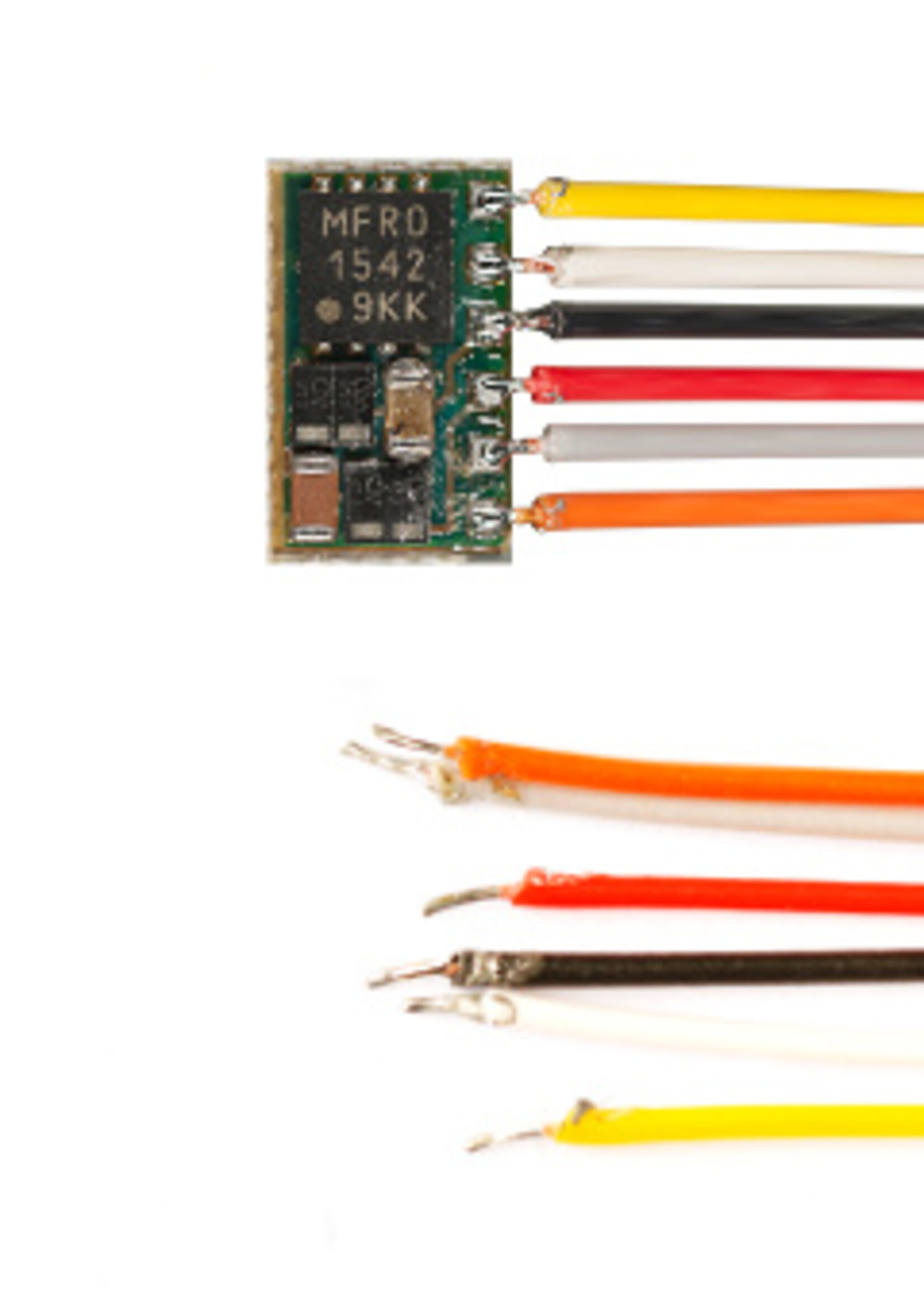

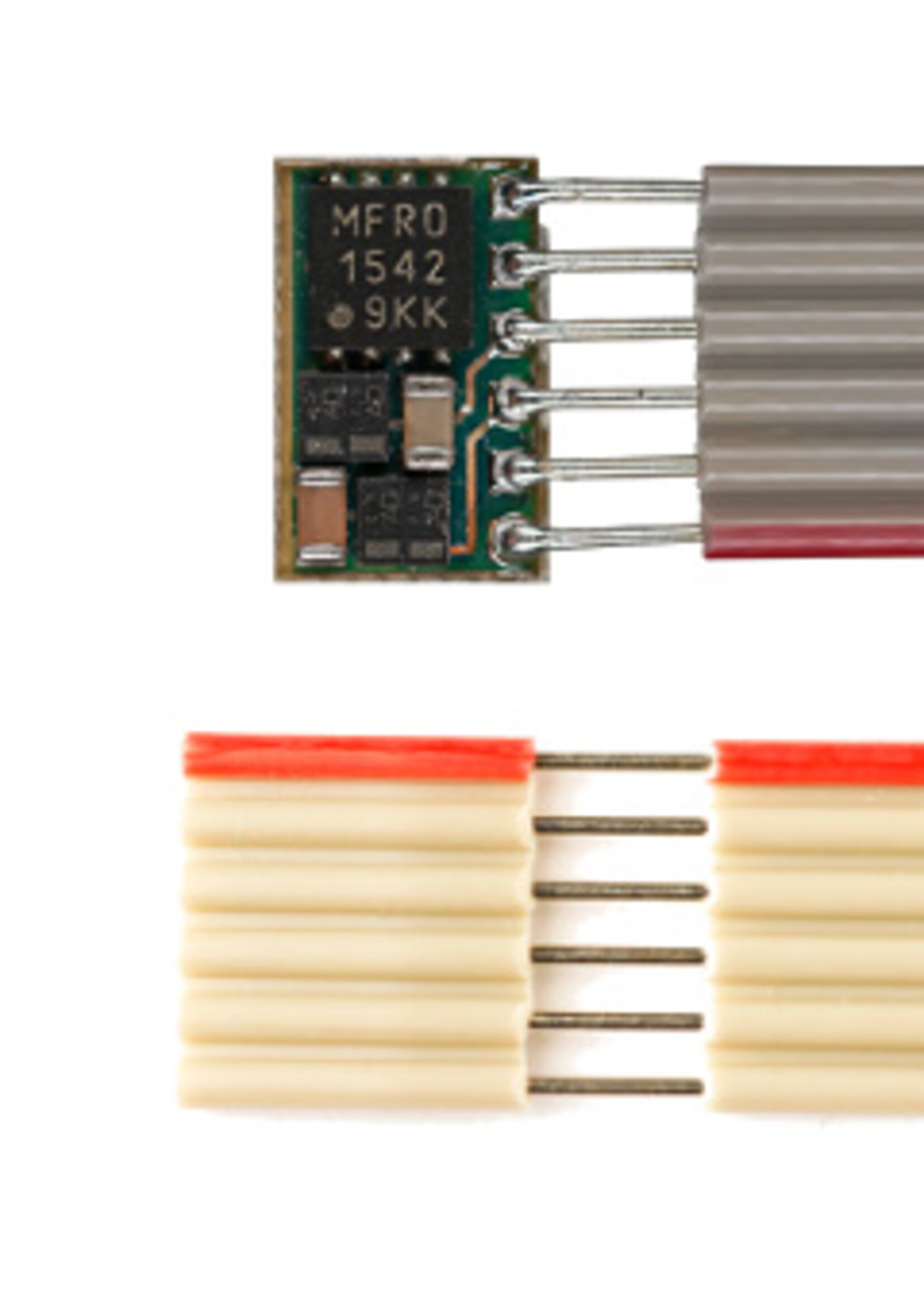

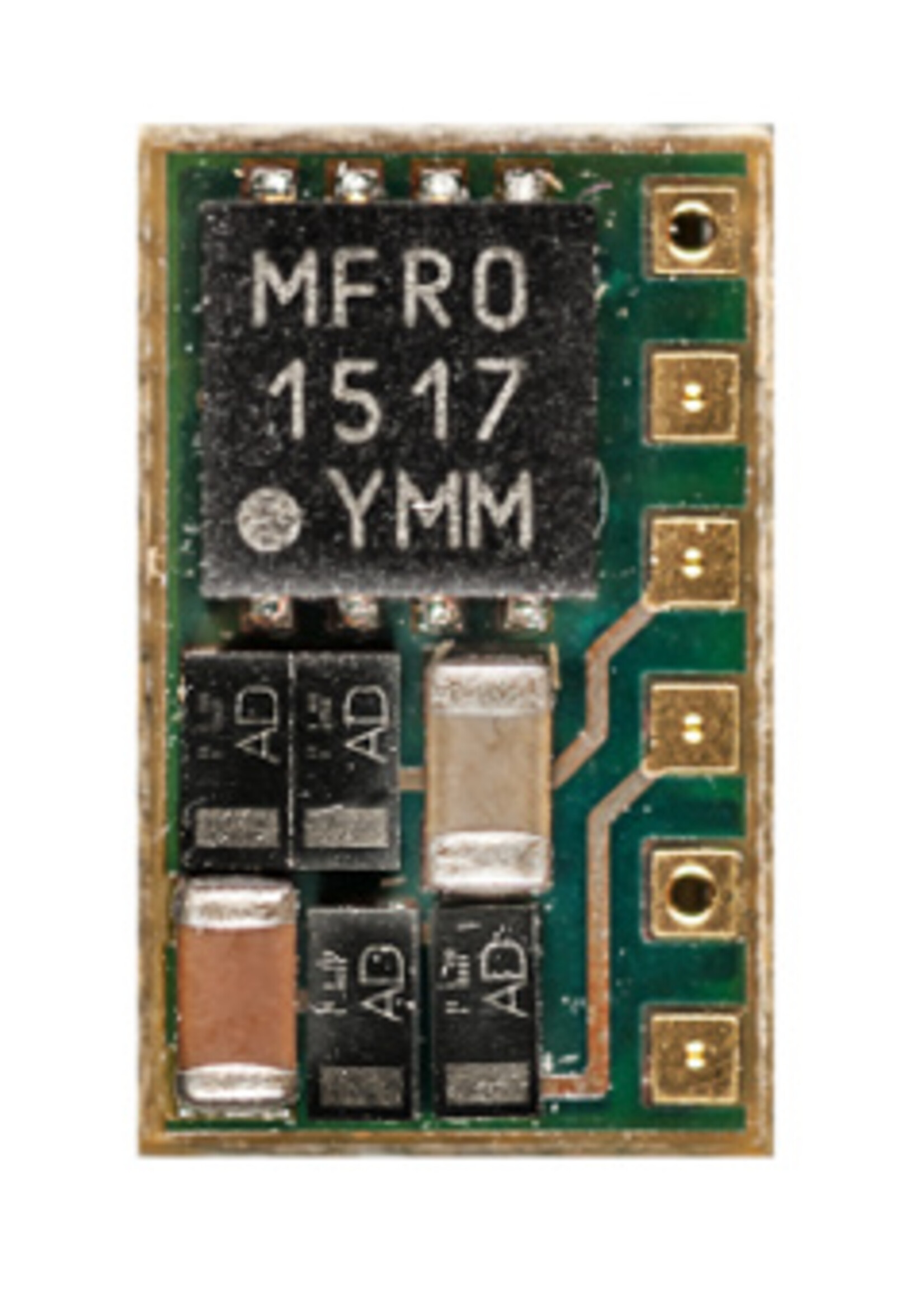

Doehler & Haass PD05A

Article number: 830591
€43,90
Incl. tax
  • Buy 5 for €41,71 each and save 5%
  • Buy 10 for €39,51 each and save 10%
  • Buy 20 for €37,32 each and save 15%

The rating of this product is 5 out of 5

(5)
In stock

Product features and functions

  • For optional operation with digital systems according to SelecTRIX 1 and 2 or according to the NMRA standard (DCC)
  • The last programmed system is used in digital mode (it is not switched over automatically!)
  • SelecTRIX 1 31 speed steps, 100 addresses
  • SelecTRIX 2 127 speed steps, 10,000 addresses, 16 additional functions
  • DCC Short addresses (1-127), long addresses (0001-9999), with 14, 28, 126 speed steps
  • The latest generation of load control, resulting in particularly smooth control behavior
  • Different control variants for optimal adaptation to the engine
  • Internal 127 speed steps
  • Adjustable motor frequency (16 kHz, 32 kHz)
  • Block section operation with simple diodes in digital operation
  • Dimmable light outputs
  • Maneuvering
  • Motor, light and track connections can be exchanged electronically
  • All function outputs freely programmable
  • Temperature protection
  • Reset function for DCC and SX2
  • Update capability of the decoder

The update (firmware download from the Internet is free of charge) is possible when the decoder is installed on the track (no opening of the vehicle necessary) and is carried out either via the FCC digital center or the programmer . If no suitable hardware is available, the company Doehler & Haass will provide a programmer on request .

The PD05A nano-locomotive decoder supports braking with asymmetrical digital voltage (four diodes in series and one anti-parallel diode), slow travel (with suitable brake modules) and bidirectional communication (locomotive address feedback in DCC mode, RailCom®).

The PD05A nano locomotive decoder does not support analog operation. The PD05A nano locomotive decoder does not support SX1 programming. Please set up SX1 operation with SX2 parameter programming.

ano locomotive decoder 0.5 A.

Operating mode SX1, SX2, DCC
Dimensions [mm] 5.0 * 7.9 * 2.5
Total resilience 0.5 A
Max. Motor current 0.5 A
Max. Driving voltage 18 V
LV, LR (dimmable) 150 mA each
