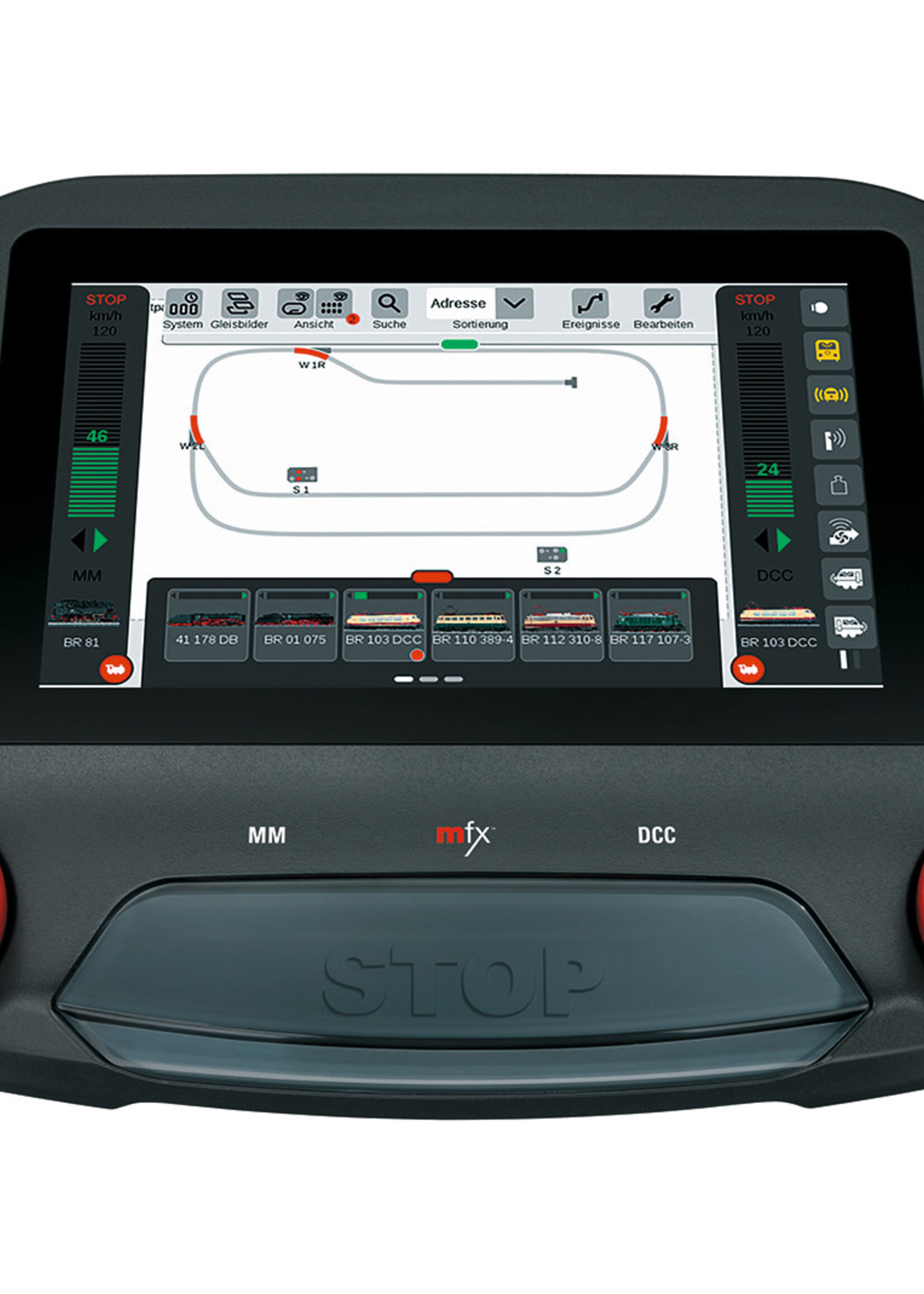

As a multi-protocol control unit, the Central Station 3 plus, with its high-resolution, modern color touchscreen, the 2 speed controllers and the integrated central track diagram control panel, offers the possibility of simple and convenient control of the locomotives and the entire layout. The Central Station 3 plus is only To be used in connection with the switched-mode power supply 60061 (60101 for track 1 and L51095 for LGB) (not with transformers such as 60052). Switching power supply not included.

Highlights
Digital multi-protocol control unit (mfx, mfx +, DCC, Motorola).
High resolution, modern color touchscreen.
Integrated, central track diagram control panel.
Housing with central stop button and 2 rotary controls in robust industrial quality.
Up to 32 switchable locomotive functions.
2 built-in locomotive card readers.
Integrated loudspeaker.
Built-in SD card slot.
Integrated powerful booster.
5.0 A max. Output power when using switching network 60101 / L51095 (recommended for track 1 or LGB).
Up to 320 Motorola and 2048 DCC solenoid accessories can be controlled.
Route control (including shuttle train control).
2 USB hosts for e.g. Mouse, keyboard, USB stick etc. and 1 USB charging socket.
Direct connection for 2 mobile stations and a bus expansion device.
Integrated s88 connector.
Connections for e.g. Network, external speakers, Märklin bus.
Extensions can be connected using the Märklin bus.
Multi-device capable with Central Station 3 plus.
